See further down the page for full specifications and assembly info.
Have you dreamed of building your own live steam model, but lacked the confidence to take the plunge? This fully machined kit gives you a unique opportunity to build an exhibition quality model irrespective of your engineering experience.
You will require a small selection of hand tools only. The kit comes complete with every component you need to build a working live steam locomotive, including a silver soldered copper boiler which is UKCA marked. The model is supplied ready painted in the livery of your choice. This is a stove enamel process that delivers a high quality paint finish that can rarely be achieved in the home workshop.
The kit comes with comprehensive instructions and you will have access to a help line if you need assistance during the assembly. Building this kit will give you valuable knowledge of how a live steam locomotive works, providing confidence in running and future maintenance. Enjoy every minute of the estimated 100 hours assembly time and take deserved pride in achieving your ambition!
Every model is covered by a full 5 year warranty. We undertake to replace any defective component free of charge. Our service is considered to be second-to-none so you can buy with complete confidence.
We offer stage payment plans (or Lay by) on all of our locomotives and for any of our pre-order trains we only require a deposit to secure your locomotive in the production batch. Contact us to discuss payment plans. Alternatively you can use the below form to place your order with a holding deposit or payment in full.

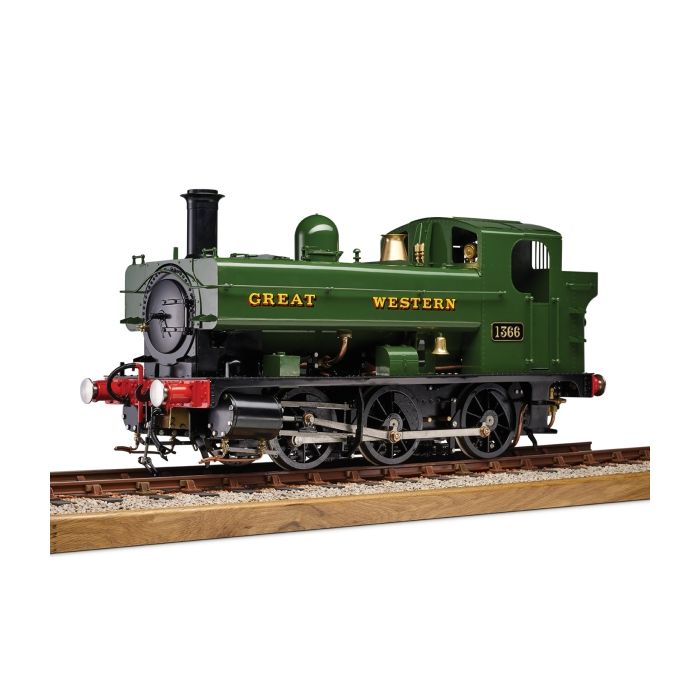

All six locomotives of the class were constructed in 1934 at Swindon and employed on shunting duties, or on lines with tight curves and weight restrictions. No. 1367 was transferred to work at Weymouth Quay Station and was fitted with a bell to warn pedestrians. The 13xx Class was turned out in different liveries including GWR Green and BR Black.
Further features and specifications
Sprung axle boxes with needle roller bearings
Etched brass body with rivet detail
Safety valve
Painted and ready-to run
Pressure Gauge
5 inch gauge, Coal-fired live steam
2 Outside Cylinders
Stephenson valve gear
Cast iron cylinder blocks (bronze liners)
Drain cocks Mechanical
Lubricator
Silver soldered copper boiler
Multi-element semi-radiant superheater
Reverser
Boiler feed by axle pump, injector, hand pump
Stainless steel motion and grate
Dimensions & Weight
Length: 686mm
Width: 241mm
Height: 318mm
Weight: 35kg
