3.5" Gauge Britannia Class

Over 50% of the production batch is pre-sold so be quick! Build completion is scheduled for May/June 2022.

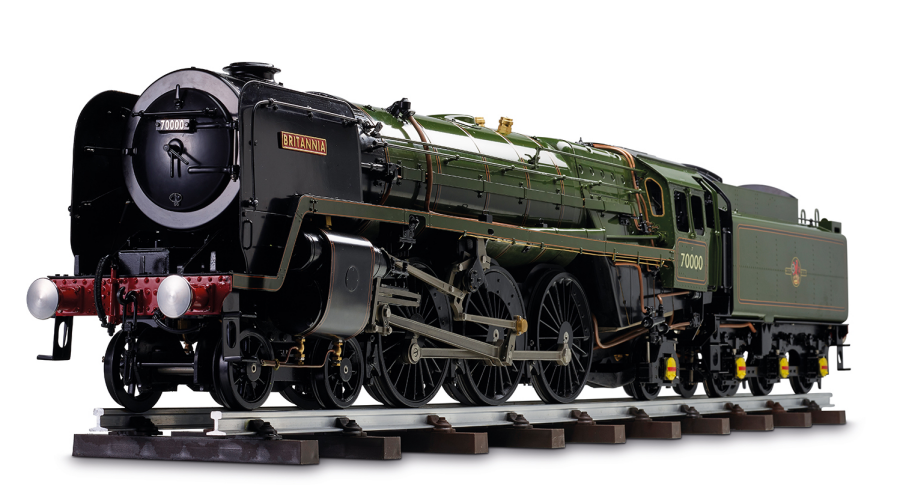

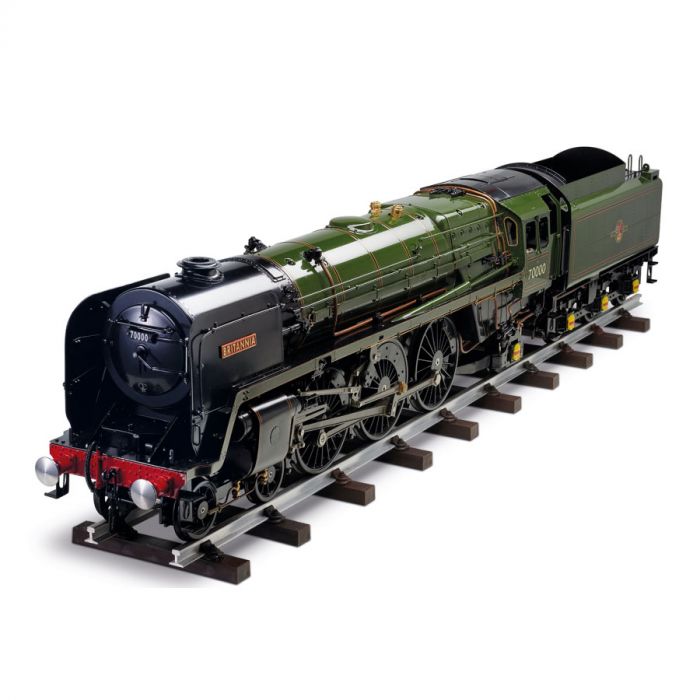

The Britannia Class model is built to a near exact scale of 1/16th. Beautifully detailed it is designed to run on 3.5" gauge track and is coal-fired.

Each model comes complete with a silver soldered copper boiler, hydraulically tested to twice working pressure. We supply fully compliant certificates for the boiler. As testament to our confidence in the models we supply we offer a full 12 months warranty on every product.

In stock

Payment plans available

We offer stage payment plans (or Lay by) on all of our locomotives and for any of our pre-order trains we only require a deposit to secure your locomotive in the production batch. Contact us to discuss payment plans. Alternatively you can use the below form to place your order with a holding deposit or payment in full.

Test Run


Length 1340mm, Width 170mm, Height 250mm.

Weight 38kg.


Specifications & features

  • 3.5" Gauge Britannia Class
  • Stainless steel motion
  • Sprung axle boxes with needle roller bearings
  • Two safety valves
  • Available in choice of names
  • Painted and ready-to run
  • Length 1340mm Width 170mm
  • Height 250mm Weight 38 kgs
  • Coal-fired
  • 2 Outside Cylinders
  • Walschaerts valve gear
  • Piston valves
  • Automatic drain cocks
  • Mechanical lubricator
  • Silver soldered copper boiler
  • Reverser in cab
  • Boiler feed by axle pump, and hand pump
  • Etched brass body with rivet detail

Designed by R. A. Riddles and introduced in 1951 the Britannia Class was the first British Railways standard design to appear. A total of 55 of the Class were all built at Crewe works with the final engine entering traffic in 1954. With just two outside cylinders it was a practical design built for ease of maintenance.

In spite of this the locomotive was a handsome and well proportioned design.. A real favourite among railway enthusiasts. With its 74" driving wheels it was an archetypal passenger express and looks at home, at speed, at the head of a long rake of Mk 1 coaches. Allocated to all regions the locomotives remained in service to the very end of the British steam era with 70013 Oliver Cromwell hauling the final scheduled passenger service in 1968.


3.5 Inch Britannia Live Steam Loco


Britannia Live Steam Locomotive
